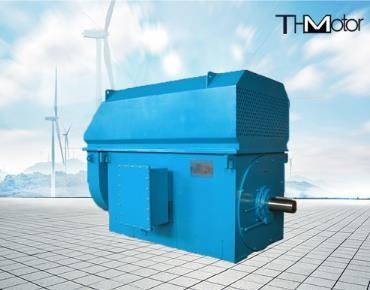

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV

Tellhow Technology (Chongqing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV from wholesalers

    Buy cheap IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV from wholesalers
    • Buy cheap IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV from wholesalers

    IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV

    Ask Lasest Price
    Brand Name : THMotor
    Model Number : Y800-4
    Certification : CE
    Price : USD 20000-100000
    Supply Ability : 100SET/YEAR
    Delivery Time : 70DAYS
    • Product Details
    • Company Profile

    IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV

    10KV 50Hz High Voltage Electric Motors For Blast Blower 3600rpm


    Product overview


    High voltage electric motors adopts new technologies, new materials, new processes in the 1990s, sophisticated material selection, and sophisticated manufacturing. It has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, and convenient installation and maintenance.


    This series of motors complies with the national standard GB755 "Rating and Performance of Rotating Electric Machines", the industry standard JB/T7593 "Technical Conditions for Y Series High Voltage Three-phase Asynchronous Motors (Frame No. 355-630)", JB/T10315.1 "YKS, YKS- W, YQF series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", JB/T10315.2 "YKK, YKK-W series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", The enterprise standard "10KV three-phase asynchronous motor (frame size 450-800) technical conditions" and IEC international standards, the mechanical dimensions and tolerances of each component meet the corresponding national standards and international standards.


    Please specify the following when ordering:
    (1) Motor model: YK5000-2/1430
    (2) Rated frequency: 50Hz
    (3) Rated power: 5000kw
    (4) Rated voltage: 10kV
    (5) Number of poles: 2 poles
    (6) Cooling method: IC01
    (7) Installation type: IM7212
    (8) Protection class: IP23
    (9) Rotation direction: clockwise (looking at the shaft extension end of the motor)
    (10) Outlet box location: right side of the motor (looking at the shaft extension end of the motor)
    (11) Space heaters and temperature measuring elements should be installed.


    Product specifications


    center high500/630/710/800IP levelIP54/IP44/IP55/IP23
    Rated Power220kw - 2500KW,3500KW 5000KWCooling Method)IC611
    Voltage3KV, 6KV, 10KVPoles2,4,
    Frequency50HZ/60HZInsulation classF
    Speed500/590/740/990/1500/3000RPMEfficiency84-94.5%
    P.F.power factor0.84-0.85AT(Ambient Temp)-15-40℃

    Each series of motors


    Our aftersales service


    Product packaging


    Certifications
