    10KV 50HZ High Voltage Induction AC Motor

    Ask Lasest Price
    Brand Name : THMotor
    Model Number : Y800-4
    Certification : CE
    Price : USD 20000-100000
    Supply Ability : 100SET/YEAR
    Delivery Time : 70DAYS
    • Product Details
    • Company Profile

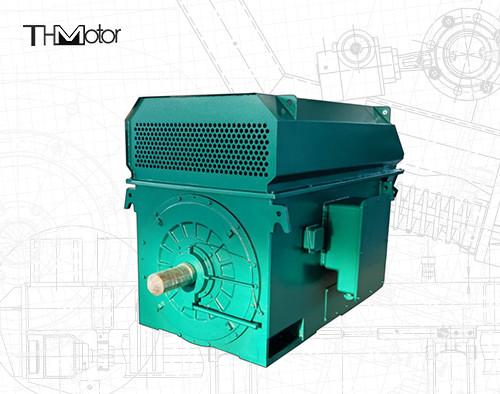

    10KV 50HZ High Voltage Induction AC Motor

    YXKS​710 1600KW 10KV 50HZ Induction AC Motor High Voltage Electric Motors


    Product overview


    YX, YXKK, YXKS series high-efficiency high-voltage three-phase asynchronous motors are optimized series of products developed on the basis of the introduction of foreign advanced technology and combined with the company's high-voltage motor design and manufacturing experience. It has compact structure, light weight, high efficiency and low noise. , high reliability, long service life, easy installation and maintenance and so on. It can be interchanged with corresponding Y, YKK, YKS series three-phase asynchronous motors. The efficiency of this series of motors meets the energy efficiency standards of high-efficiency motors recommended by the National Development and Reform Commission.


    The motor frame size is 355~900mm, the power is 185~10000kW, the rated voltage is 3kV, 6kV and 10kV, the rated frequency is 50Hz, the protection class is IP23, IP54, IP55, the installation method is B3, V1, the cooling method is IC01, IC611, IC616, IC81W, Working system S1. The motor adopts steel plate welded box structure, which is beautiful in appearance and convenient for installation and maintenance; the stator winding is treated with F-class insulation vacuum pressure immersion solvent-free paint (VPI), which has excellent and reliable insulation performance, high mechanical strength and reliable operation.


    Each series of motors

    10KV 50HZ High Voltage Induction AC Motor


    Our aftersales service

    10KV 50HZ High Voltage Induction AC Motor


    Product packaging

    10KV 50HZ High Voltage Induction AC Motor


    Certifications

    10KV 50HZ High Voltage Induction AC Motor
