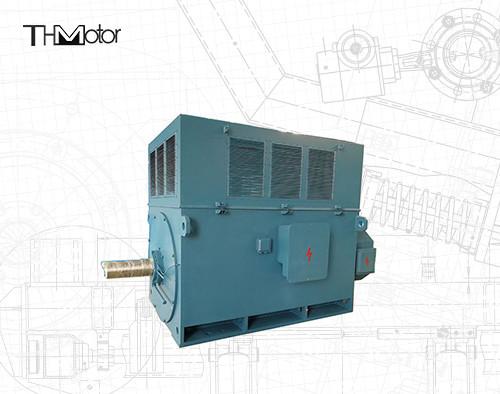

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw

    Ask Lasest Price
    Brand Name : THMotor
    Model Number : T 7000
    Certification : CE
    Price : USD 20000-100000
    Supply Ability : 100SET/YEAR
    Delivery Time : 70DAYS
    • Product Details
    • Company Profile

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw

    YR Wound Rotor Induction Motor For Rolling Mill Steel Plant


    Product overview


    This series of motors has the advantages of high efficiency, energy saving, low noise, small vibration, safe and reliable operation, and convenient installation and maintenance. It can be used for various machines for general purposes, such as ball mills, fans, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other original motors. In addition, it can also be used to drive large rotational inertia fans, coal mills, rolling mills, winches, electric shovels and other machinery.
    YR series 6KV, 10KV wound rotor three-phase asynchronous motors are produced according to the technical conditions of JB/T7594 (6KV) and JB/T10445-2004 (10KV), the protection level is IP23 (see GB4942.1), and the cooling method is IC01 , IC11, IC21 or IC31 (see GB/T1993).
    Model meaning
    Take YR4001-4 as an example: YR means wound rotor asynchronous motor; 4001 means the shaft center height is 400mm, and the No. 1 iron core is long; 4 means the 4th grade.
    Ordering Instructions (Users must specify the following requirements when ordering)
    Motor model: YR3551-4 Installation method: IMB3
    Rated power: 220KW Protection class: IP23
    Rated voltage: 6000V Cooling method: IC01
    Rated frequency: 50HZ Insulation class: F class
    Synchronous speed: 1500r/min Environmental conditions: 1km above sea level, ambient temperature 40℃


    Product specifications


    PRODUCT NAME:YR Wound Rotor Induction Motor For Rolling Mill Steel PlantPOWER RANGE:1000-12000kw
    VOLTAGE:3kv-11kvSPEED RANGE:1000rpm-1500rpm
    POLES:4,6FREQUENCY:50hz,60hz
    COOLING METHOD:IC37,IC81WIP RATE:IP44,IP54,IP55

    Each series of motors

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw


    Our aftersales service

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw


    Product packaging

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw


    Certifications

    YR High Efficiency Electric Wound Rotor Induction Motors 1000kw-12000kw
