    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency

    Ask Lasest Price
    Brand Name : THMotor
    Model Number : YKK-500/1250KW
    Certification : CE
    Price : USD 20000-100000
    Supply Ability : 100SET/YEAR
    Delivery Time : 70DAYS
    • Product Details
    • Company Profile

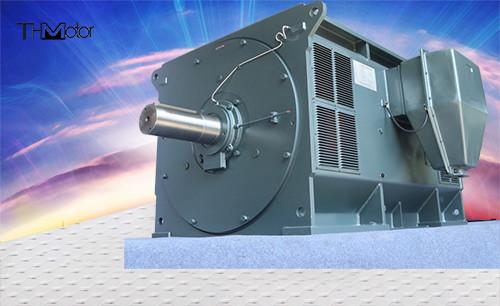

    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency

    Y Series High Voltage Electric Motor High Voltage AC Motor


    Product overview


    Y series high-voltage motor adopts box-type structure, and the frame is welded by steel plate, which is light in weight and good in rigidity. Y series high-voltage motors are naturally ventilated and cooled, and a protective top cover is installed on the upper part of the base, which is convenient for disassembly and assembly, and facilitates the maintenance of the motor.


    The stator winding is made of F-class heat-resistant insulating material, with reliable top binding, and the Y series high-voltage motor has good insulation performance and mechanical strength through vacuum pressure dipping.


    The rotor of the Y series high-voltage motor adopts a squirrel-cage structure with reliable cast aluminum or copper conductors. There are two types of bearings: rolling bearings and sliding bearings, which depend on the speed and power of the motor.


    Product specifications


    Motor frame500/630/710/800IP RateIP54/IP44/IP55
    Power range220kw - 2500KW,3500KWIC(cooling)IC611
    Voltage3KV, 6KV, 10KVPoles2,4,6,8,10,12
    Frequency50HZ/60HZInsulationF
    Speed500/590/740/990/1500/3000RPMEfficiency84-94.5%
    Power Factor0.84-0.85AT(Ambient Temp)-15-40

    Each series of motors

    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency


    Our aftersales service

    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency


    Product packaging

    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency


    Certifications

    Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency
